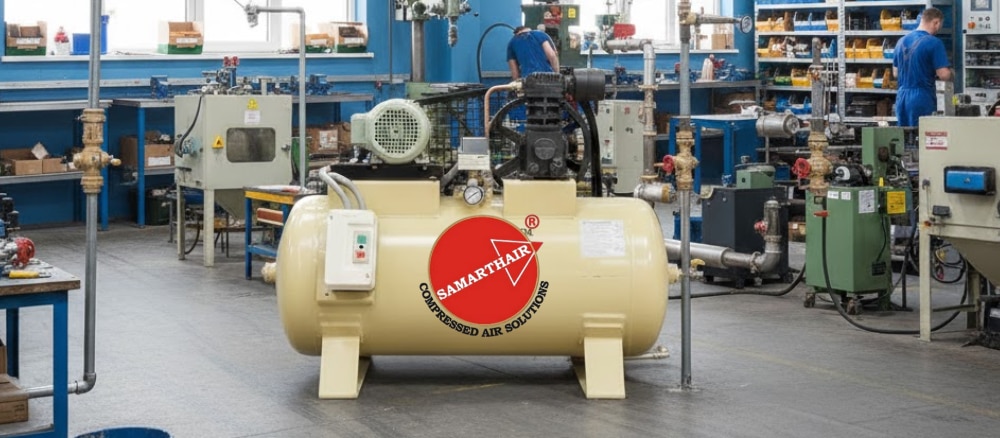

The Best Air compressor Manufacturer in mumbai

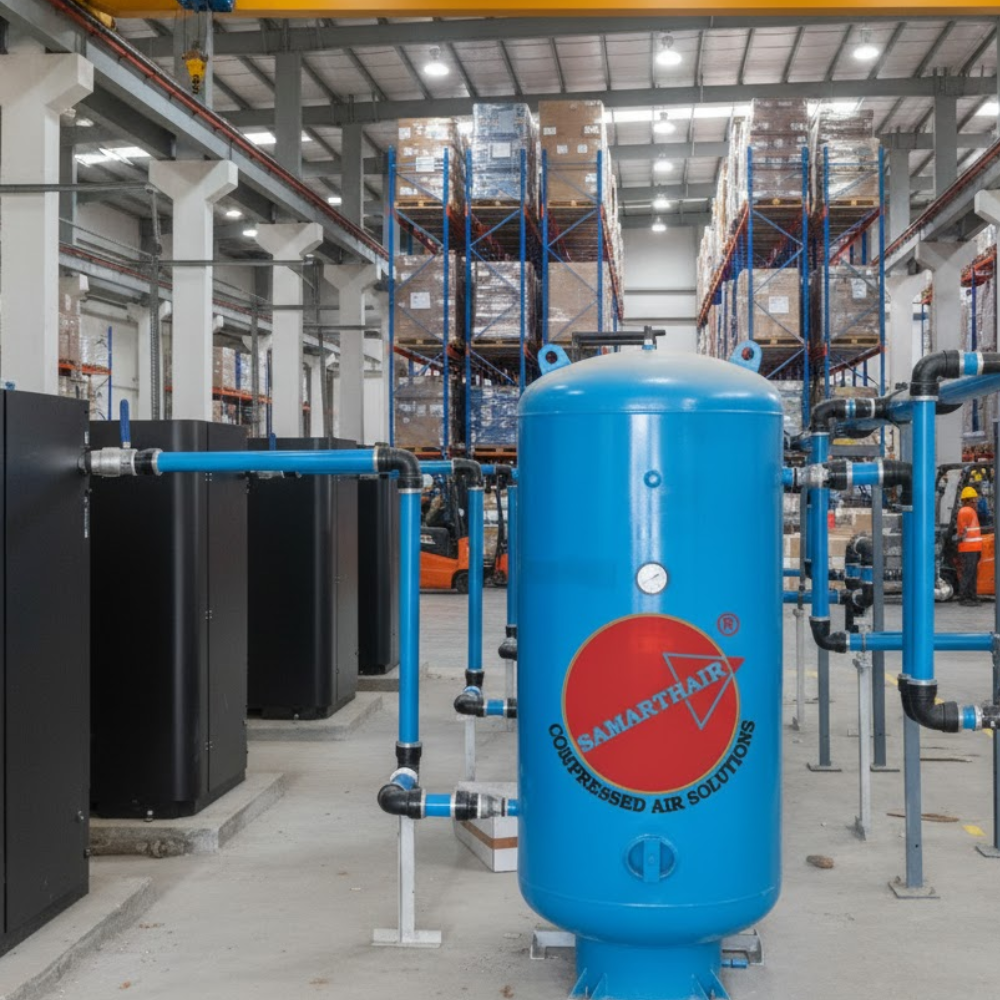

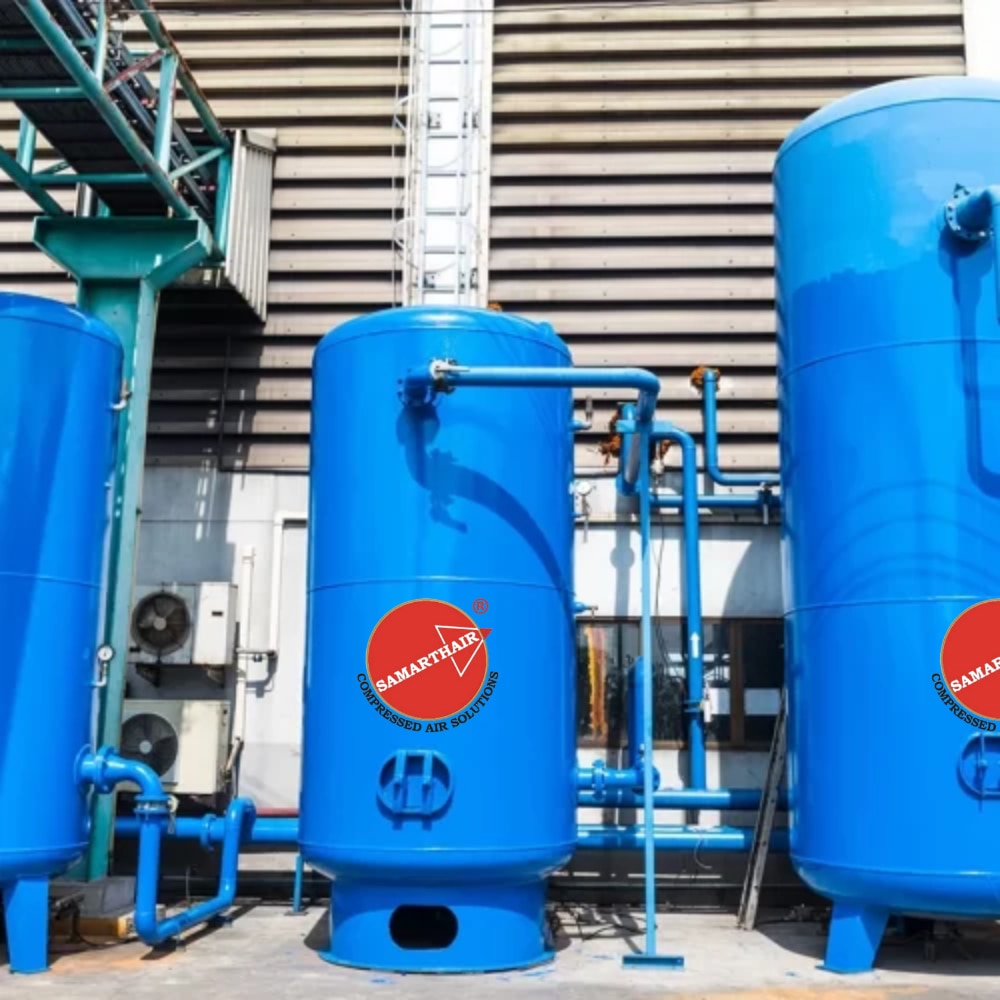

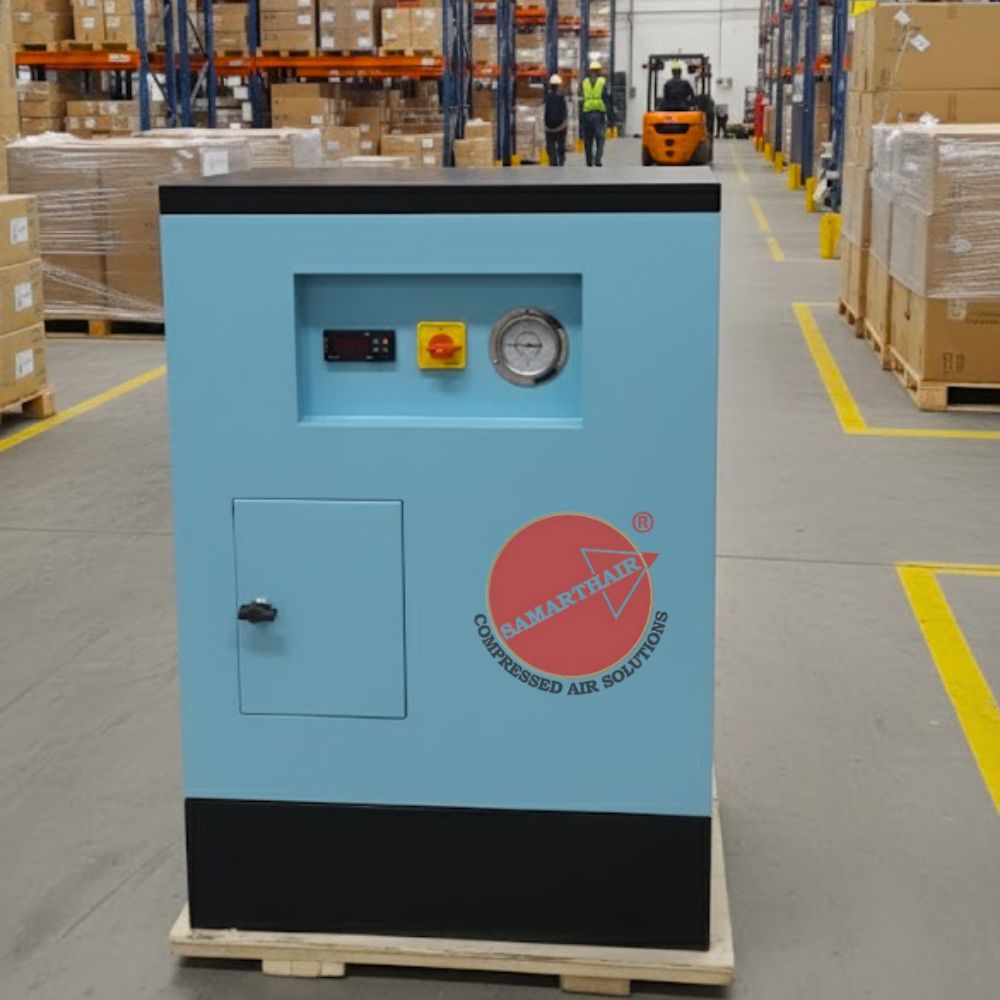

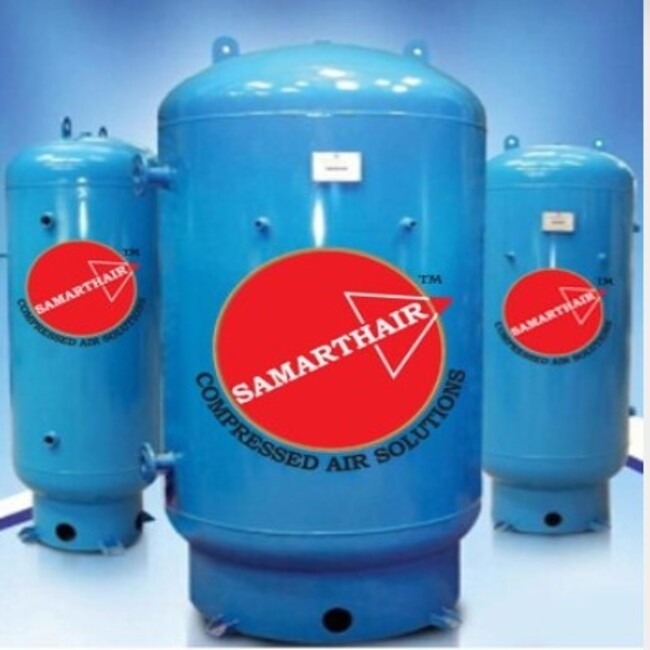

Compressed Air Oil & Dust Filters, Refrigerated Air Dryers, Dessicant Air Dryers, Auto Drain Valve, Reciprocating Air Compressor Spare Parts, Screw Air Compressor Spare Parts, Air Dryer Spare Parts. We offer Air Receiver tanks in various sizes. These are made to order as per application & specific requirements. Available in both horizontal & Vertical type, we adhere to the latest design & manufacturing standards. The receiver serves many important functions. It damps pulsations from the discharge line of the compressor, resulting in essentially steady pressure in the system. It serves as a reservoir to take care of sudden or unusually heavy demands in excess of the compressor capacity. It prevents too frequent loading and unloading of the compressors. In addition, it serves to precipitate some of the moisture and possible oil carryover that may be present in the compressed air as it comes from the compressor or that may be carried over from the after-cooler.

FAILED

Multi layer composite (MLC) Based Modular Compressed Air Piping System MLC Pipe is an aluminium core tube bonded by adhesive to the interior and exterior tube layers of polyethylene. MLC Pipes combine the advantages of metal and plastic pipes and eliminate the disadvantages of both at the same time. Some of the superior features of MLC Pipes are: * 50 Years Of Long Working Life :- ➢ Hygenic, no growth of micro-organisms, prevents oxygen and gas permeation ➢ Food grade material and no solvents/chemicals required at joints ➢ Corrosion resistant, rust and scale free ➢ Excellent resistance to chemicals ➢ Temperature range from -20 C to 95 C ➢ Very low linear expansion compared to other plastic pipes ➢ 30% more flow of fluid than in metal pipes ➢ Easily bendable and never springs back resulting in less number of fittings ➢ Easy and quicker installation ➢ Negligible wastage as pipes come in coils of 200, 100 and 50 metres ➢ Light in weight, easy to carry and store ➢ Fire resistance ➢ UV stabilised * These Pipes Can Be Used For Multiple Applications, Some Of Which Are Listed Below: ➢ Gas, Vacuum and Compressed Air / Pneumatic applications ➢ Cold and Hot water distribution, Potable water distribution, Chiller lines ➢ Medical, Foodstuff and beverage industry ➢ Chemical processing industry ➢ Air Conditioning and Refrigeration system ➢ Diesel, Petrol, Kerosene and other Fuel oil lines ➢ Cable conduits

FAILED

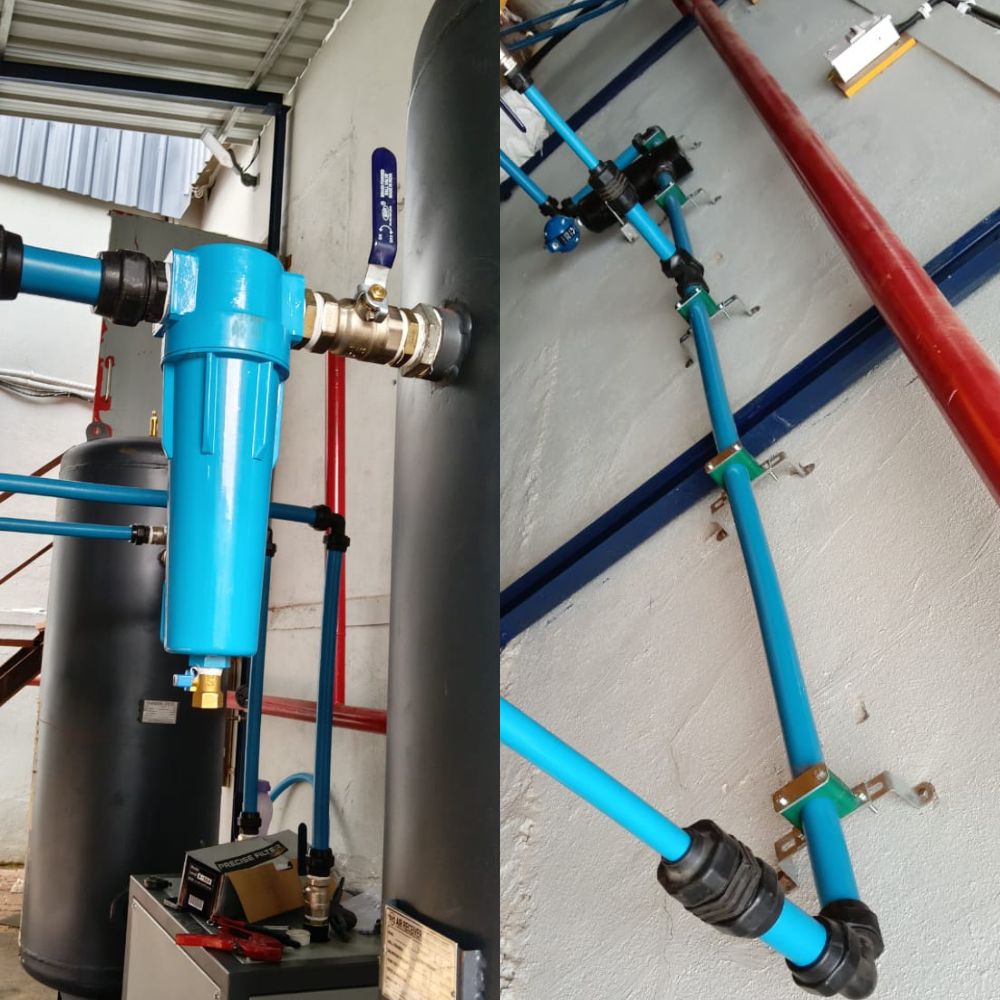

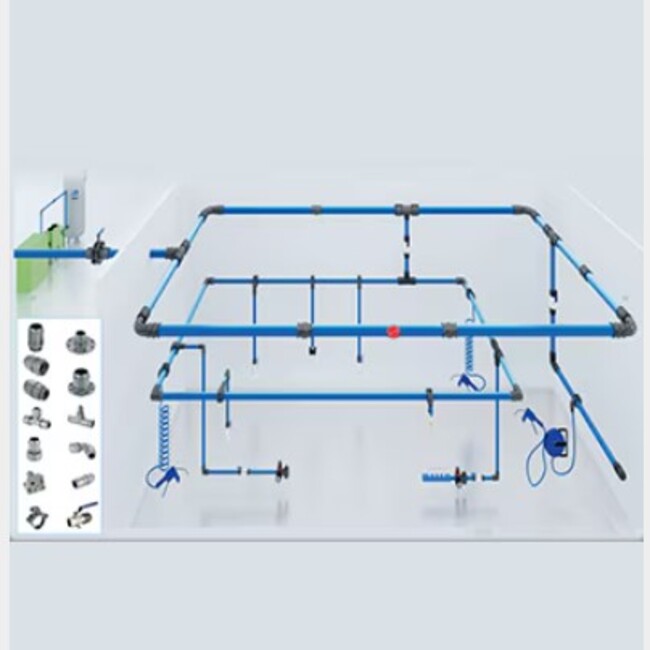

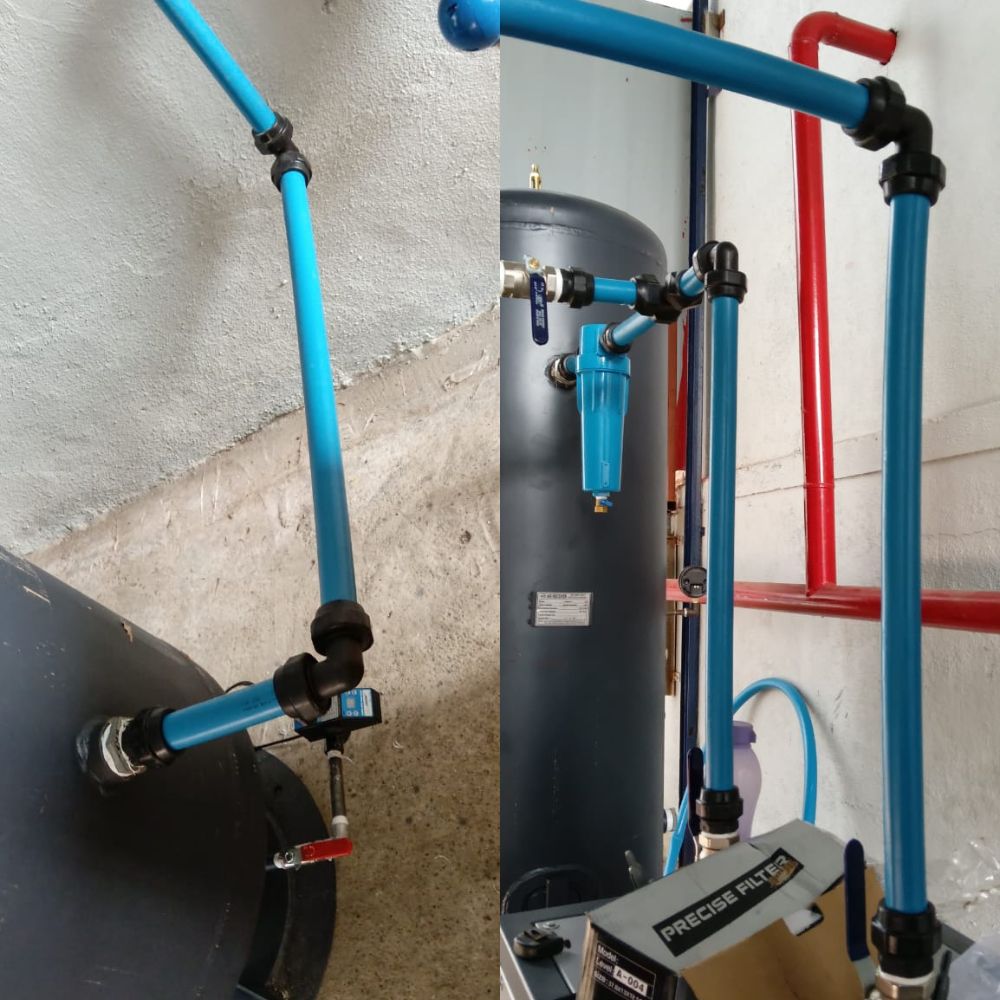

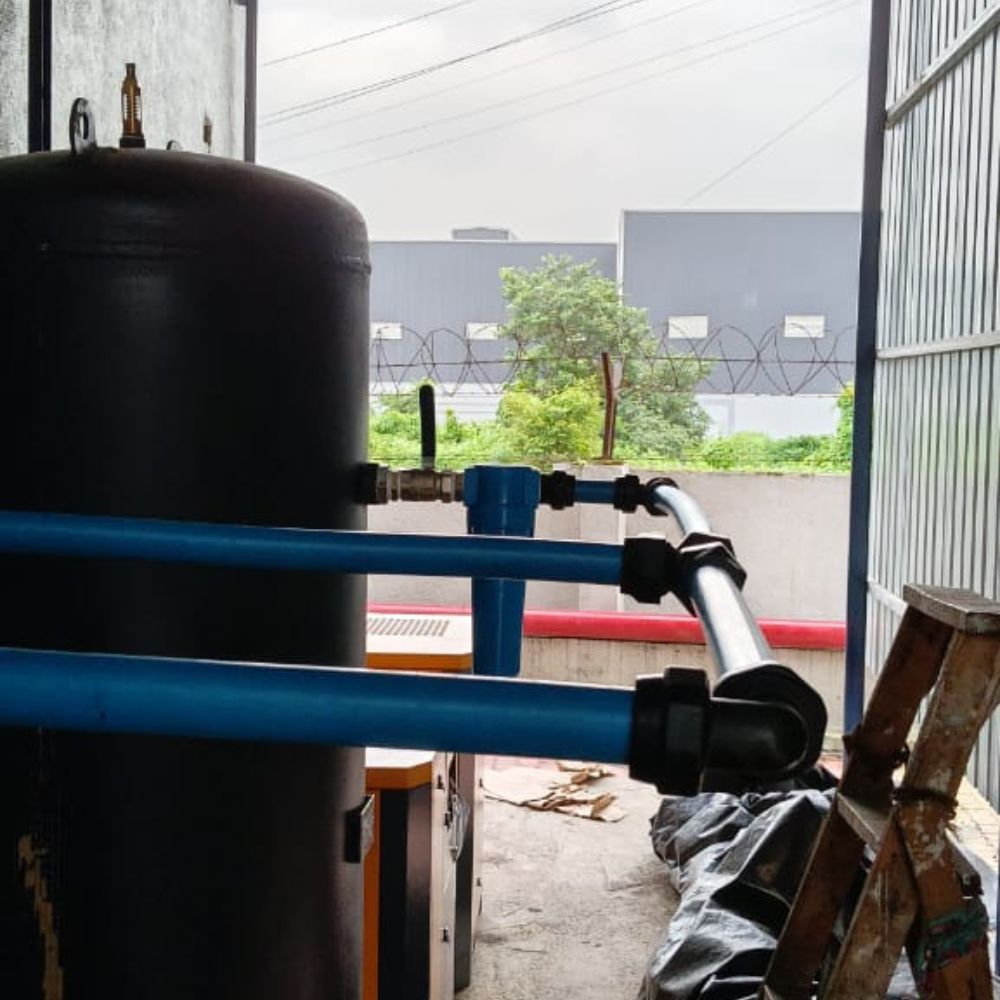

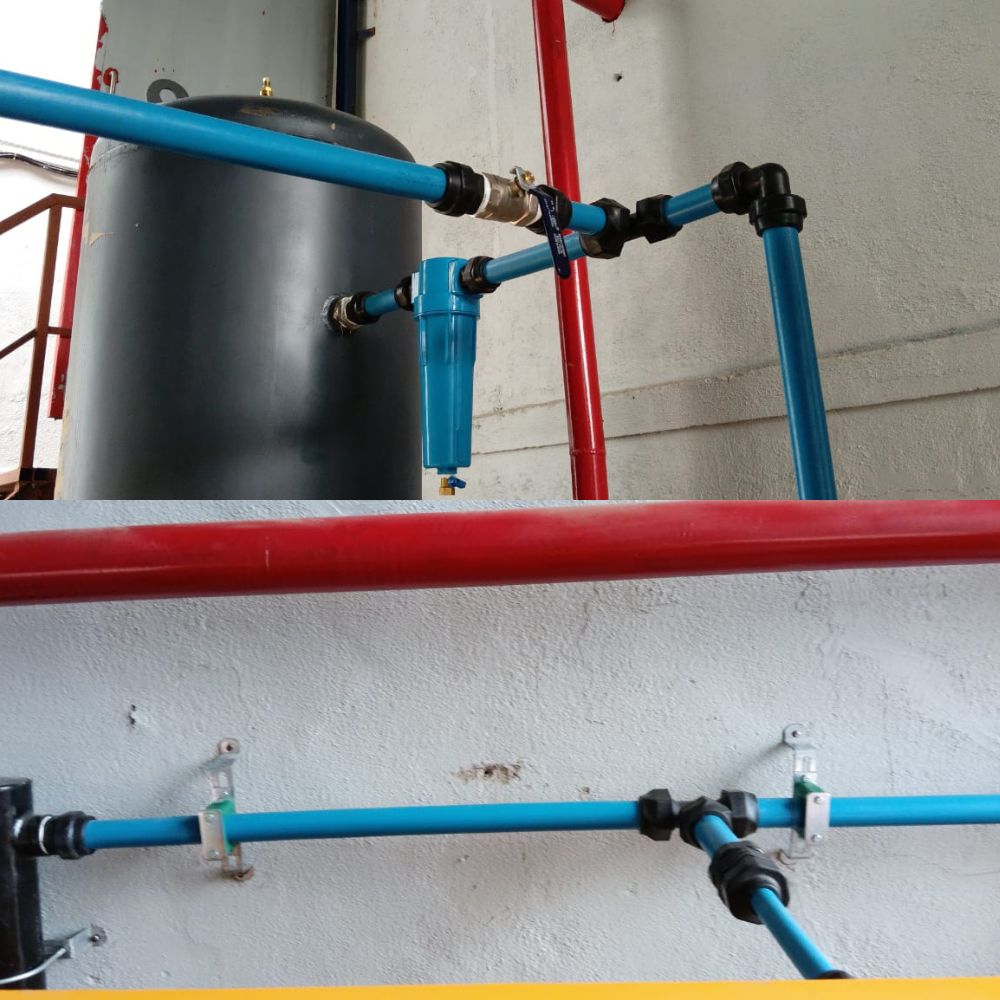

❖ COMPRESSED AIR PIPING SYSTEM :- ➢ Aluminium based Modular piping system Offers ➢ Lower installation cost ➢ Push-to-connect concept ➢ No corrosion ➢ Powder Coated ➢ Modular design ➢ Re-usable Materials ➢ Easy to install ➢ 16mm - 80mm Dia pipe sizes We offers a cost effective, Innovative and energy efficient alluminum compressed air piping system. That is very easy to assemble, change and expand. Furthermore, labour accounts for only 20% of the cost of installing Quickair. By comparison, labour accounts for 60% – 80% of steel system and 50% – 70% of a copper system. The smooth calibrated aluminum construction has a low friction coefficient, providing the best possible laminar flow. Full bore fittings further minimize pressure drop for optimum flow and energy efficiency. Leak free connectors prevent air loss and wasted energy. It is ideal for installations requiring the highest quality air. Aluminum material will not rust or corrode. Further, it has no rough surfaces or interior restrictions that accumulate contaminants. The smooth interior with full bore design allows them to flow to your dryers and filters for efficient removal. We have a complete scope of supply including piping in Eight standard sizes to accommodate nearly any flow requirement, all the way down to the point of use.
